How to Fit a Geberit Wall‑Hung Toilet (In‑Wall Cistern): A Practical Guide

How to Fit a Geberit Wall‑Hung Toilet (In‑Wall Cistern): A Practical Guide

Wall-hung toilets look clean and modern, make floor cleaning easier, and can save space — but only when the in-wall frame and cistern are installed correctly. Below is a step-by-step overview of how a Geberit-style in-wall system is typically fitted, what to watch out for, and when to call in a pro.

What you’ll need

Typical requirements include: Geberit frame + concealed cistern kit, wall-hung pan, flush plate, isolation valve, correct waste connector, mounting hardware, spirit level/laser level, drill + anchors, pipe cutter, PTFE tape, and (often) moisture-resistant board + tiling materials. Exact parts depend on the model and wall type.

Step 1: Plan the position (and check the wall)

Confirm the wall can take the load (or build a suitable stud/brick support), and plan the finished floor level, tile thickness, and the final pan height. Mark the centreline and ensure you have access for the flush plate opening and service access.

Step 2: Fix and level the frame

Assemble the frame per the kit instructions. Set the frame height using the adjustable legs, then anchor it securely to the floor and wall. Take time here: the frame must be perfectly plumb and square, otherwise the pan and tiles won’t sit correctly.

Step 3: Connect the water supply

Install an isolation valve and connect the supply to the cistern inlet. Pressure-test for leaks before closing the wall. In renovations, this is also the moment to confirm pipe routing won’t clash with studs, electrical runs, or niches.

Step 4: Connect the waste outlet

Fit the correct waste bend/connector and ensure the fall is correct to the soil line. Dry-fit the pan connection pieces so you know everything aligns before the wall is boarded and tiled.

Step 5: Close the wall (board + waterproof + tile)

Use the manufacturer’s recommended board thickness and reinforcement. Keep the flush plate opening neat and accessible. Waterproofing is critical in wet areas — especially around penetrations. Tile carefully so the pan sits flush and the flush plate fits cleanly.

Step 6: Hang the pan and fit the flush plate

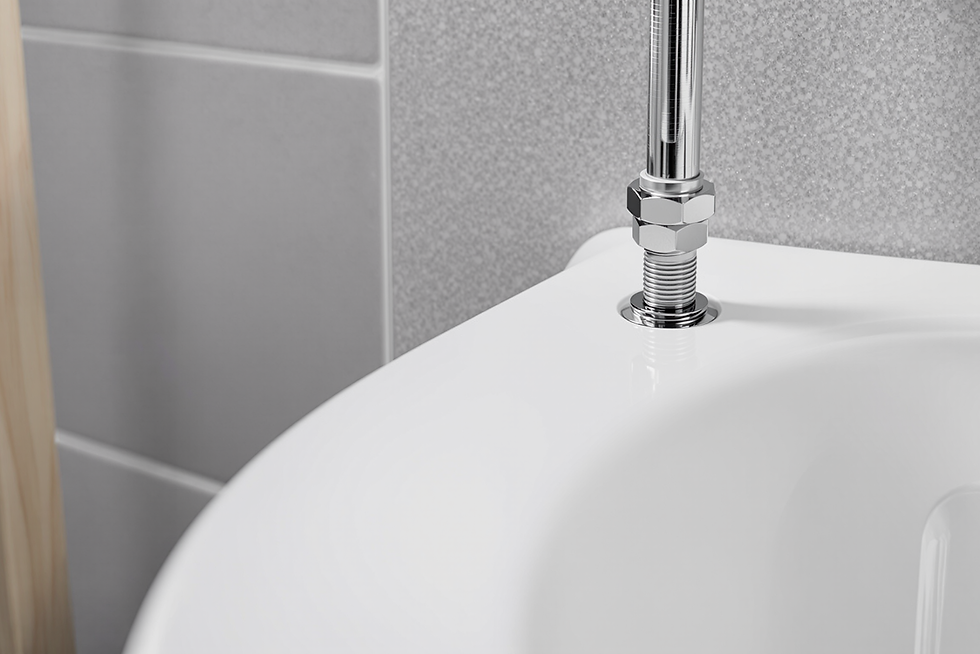

Once tiling is complete, mount the pan on the threaded rods, connect the flush pipe and waste connector, and tighten to spec (avoid over-tightening). Fit the seat, then install and adjust the flush plate mechanism. Test multiple flushes and check for any seepage.

Common mistakes to avoid

• Frame not perfectly level/plumb • Not pressure-testing before closing the wall • Incorrect waste alignment or insufficient fall • Weak wall build-up (movement causes cracked grout/tiles) • Poor waterproofing around penetrations • Flush plate opening finished too tight/too loose
